Foundation Bolts For $4.1 Billion Aluminium Recycling And Rolling Facility In North America

Brooks Forgings specialises in hot-forged bolting solutions in the UK. Our tooling allows us to make a wide variety of products, such as DIN 7992, DIN 261, and SN425 hammerheads, as well as the full range of DIN 529 foundation bolts.

We can produce both hammerhead T-bolts and various foundation bolts up to M100 in diameter and 6 meters in length.

Recently, we were contacted about a new project in North America, requiring the production of hammerhead T-bolts to the SN425 specification, along with foundation bolts to DIN 529 Type A, meeting project-specific requirements.

hot forged SN425 hammerhead t-bolts and DIN529 type A for Novelis in Bay Minette USA

The project is for a company that specialises in aluminium rolling and recycling, producing low-carbon, high-recycled-content rolled aluminium sheets. Their new facility, once completed, will be the first new integrated aluminium rolling and recycling plant built in the U.S. in nearly 40 years.

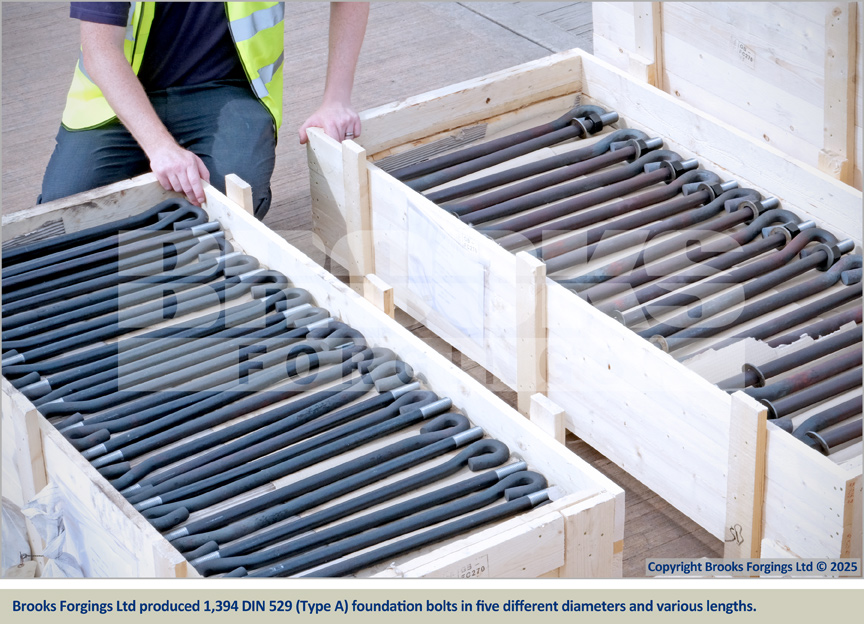

Brooks Forgings Ltd produced 1,394 DIN 529 (Type A) foundation bolts in five different diameters and various lengths

Brooks Forgings Ltd produced 215 SN425 hammerhead t-bolts in five different diameters and various lengths

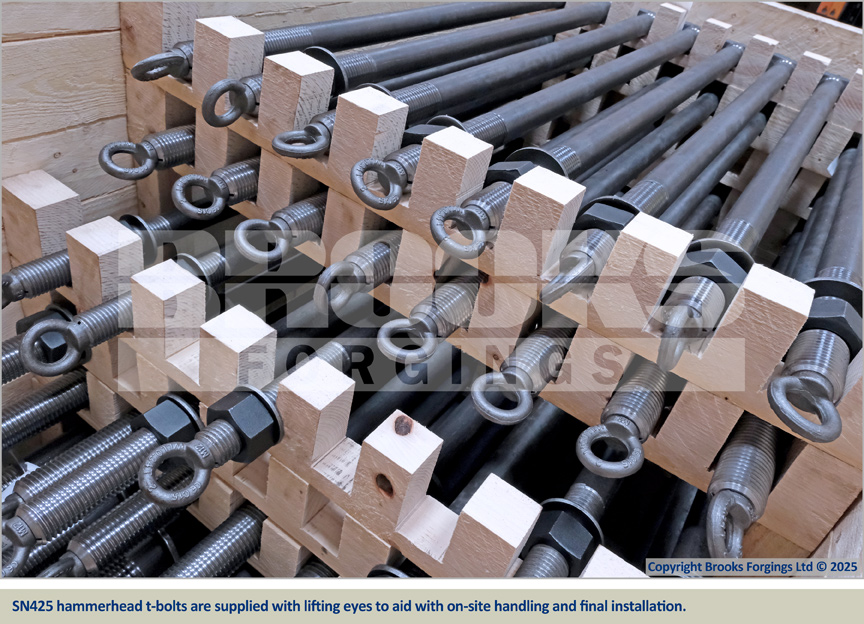

SN425 hammerhead t-bolts are supplied with lifting eyes to aid with on-site handling and final installation

The production line at the plant required…

- M16 x 440mm (T40) – DIN 529A type – 624 QTY

- M20 x 520mm (T50) – DIN 529A type – 172 QTY

- M24 x 620mm (T60) – DIN 529A type – 214 QTY

- M24 x 660mm (T60) – DIN 529A type – 184 QTY

- M24 x 720mm (T60) – DIN 529A type – 96 QTY

- M30 x 740mm (T75) – DIN 529A type – 40 QTY

- M36 x 850mm (T90) – DIN 529A type – 64 QTY

- M24 x 680mm (T100) – SN 425 type – 8 QTY

- M30 x 760mm (T120) – SN 425 type – 4 QTY

- M30 x 800mm (T120) – SN 425 type – 12 QTY

- M36 x 920mm (T160) – SN 425 type – 62 QTY

- M36 x 960mm (T160) – SN 425 type – 4 QTY

- M36 x 1220mm (T160) – SN 425 type – 5 QTY

- M36 x 1280mm (T160) – SN 425 type – 76 QTY

- M42 x 1010mm (T180) – SN 425 type – 8 QTY

- M42 x 1050mm (T180) – SN 425 type – 8 QTY

- M42 x 1230mm (T180) – SN 425 type – 4 QTY

- M48 x 1290mm (T210) – SN 425 type – 8 QTY

- M48 x 1450mm (T210) – SN 425 type – 16 QTY

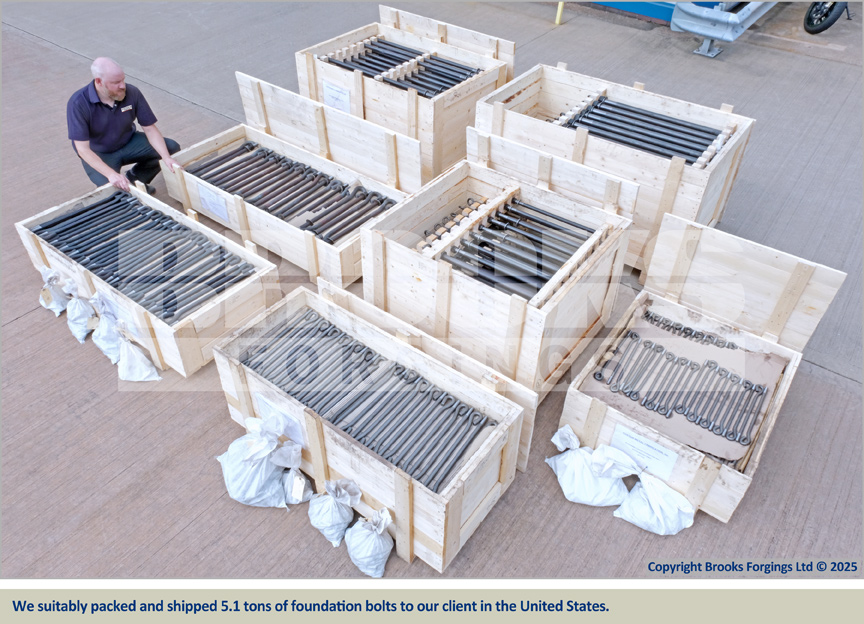

All bolts were supplied in 8.8-grade material and self-colour finish, packaged securely in 7 total custom-made wooden crates made of pressure-treated wood that complies with ISPM 15 regulations.

If you need the production of SN425 Hammerhead T-Bolts and DIN 529 Foundation Bolts tailored to your specific requirements, please contact our sales team today.
