Leading UK Manufacturer of Machined Clevis Fork Ends (Type 2).
We specialise in the precision manufacture and supply of high-integrity Machined Clevis Fork Ends, engineered as a precision-toleranced component for architectural tension systems, tie rod assemblies, and specialised mechanical linkages.
Manufactured using advanced CNC machining operations, our Type 2 clevis ends deliver exceptional dimensional accuracy and superior finish quality for high-spec engineering applications.
Utilising dedicated in-house multi-axis CNC machining, precision boring, and threading cells, we ensure consistent mechanical performance and exact pin-to-thread alignments across every production run.

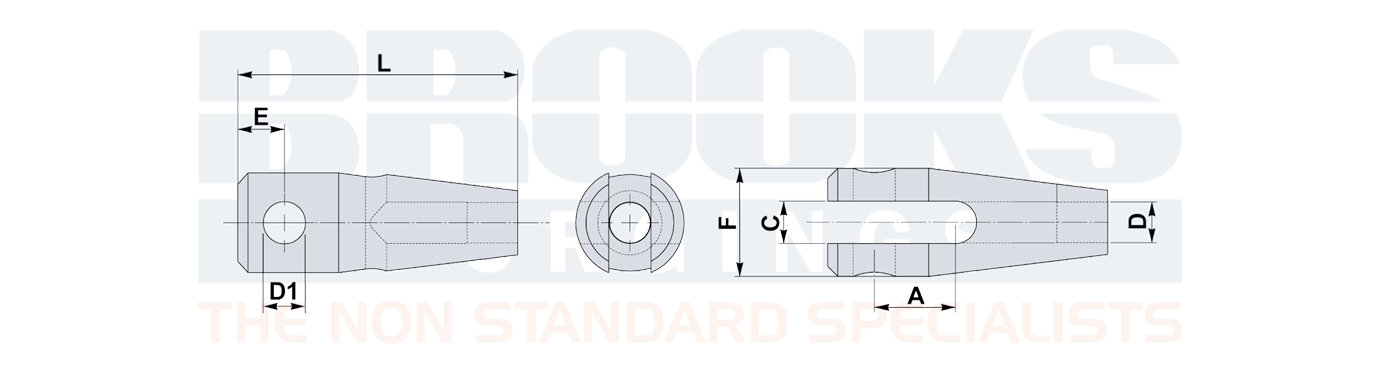

| D | D1 | C | A | E | F | L | Adjustment |
|---|---|---|---|---|---|---|---|
| Thread | mm | mm | mm | mm | mm | mm | mm |
| M10 X 1.50 | 10 | 10 | 20 | 11.2 | 25 | 68.7 | 20 |
| M12 X 1.75 | 12 | 12 | 24 | 13.8 | 32 | 82.8 | 24 |
| M16 X 2.00 | 16 | 15 | 32 | 18.4 | 40 | 109.9 | 32 |
| M20 X 2.50 | 20 | 19 | 40 | 23.0 | 50 | 137.5 | 40 |
| M24 X 3.00 | 24 | 24 | 48 | 27.6 | 60 | 165.6 | 48 |
| M27 X 3.00 | 27 | 26 | 54 | 31.1 | 70 | 185.9 | 54 |
| M30 X 3.50 | 30 | 29 | 60 | 34.5 | 75 | 206.5 | 60 |
| M33 X 3.50 | 33 | 32 | 66 | 38.0 | 80 | 227.3 | 66 |
| M36 X 4.00 | 36 | 34 | 72 | 41.4 | 90 | 247.4 | 72 |
| M39 X 4.00 | 39 | 38 | 78 | 44.9 | 100 | 268.7 | 78 |
Available in Right Hand (RH) Or Left Hand (LH) Thread.
